STTH120L06TV Datasheet, Rectifier, ST Microelectronics

STTH120L06TV Features

  • Rectifier
  • 2 x 60 A 600 V 150°C 0.95 V 70 ns K2 A1 A2 K1 K2 K1 A1 A2 Ultrafast switching Low reverse current Low thermal resistance Reduces switching

PDF File Details

Part number:

STTH120L06TV

Manufacturer:

STMicroelectronics ↗

File Size:

146.78kb

Download:

📄 Datasheet

Description:

Turbo 2 ultrafast high voltage rectifier. The STTH120L06TV, which is using ST Turbo 2 600V technology, is specially suited for use in switching power supplies, and industrial

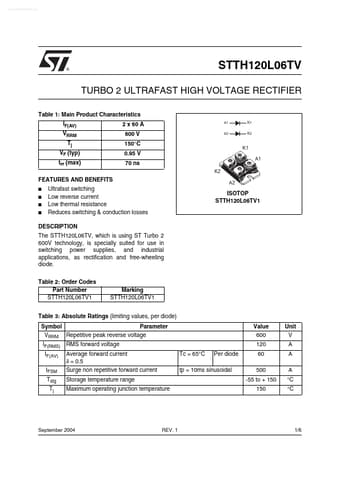

Datasheet Preview: STTH120L06TV 📥 Download PDF (146.78kb)
Page 2 of STTH120L06TV Page 3 of STTH120L06TV

STTH120L06TV Application

  • Applications as rectification and free-wheeling diode. Table 2: Order Codes Part Number STTH120L06TV1 Marking STTH120L06TV1 Table 3: Absolute Rat
