STTH1210

Ultrafast recovery - high voltage diode

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor STMicroelectronics STTH1210DY DIODE STANDARD 1000V 12A TO220AC DigiKey 57 5000 units
$0.55

STTH1210 Datasheet (210.59 KB)

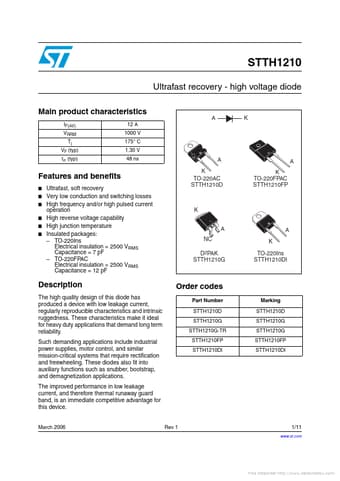

Preview of STTH1210 PDF

Datasheet Details

Part number:

STTH1210

Manufacturer:

STMicroelectronics ↗

File Size:

210.59 KB

Description:

Ultrafast recovery - high voltage diode.
STTH1210 Ultrafast recovery - high voltage diode Main product characteristics IF(AV) VRRM Tj VF (typ) trr (typ) 12 A 1000 V 175° C 1.30 V 48 ns A K .

STTH1210 Features

* Ultrafast, soft recovery Very low conduction and switching losses High frequency and/or high pulsed current operation High reverse voltage capability High junction temperature Insulated packages:

* TO-220Ins Electrical insulation = 2500 VRMS Capacitance =

STTH1210 General Description

The high quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics and intrinsic ruggedness. These characteristics make it ideal for heavy duty applications that demand long term reliability. Such demanding applications include industrial pow.
