STTH2L06 Datasheet, Diode, ST Microelectronics

STTH2L06 Features

  • Diode
  • Very low conduction losses
  • Negligible switching losses
  • Low forward and reverse recovery times
  • High junction temperature Description The STTH2L06

PDF File Details

Part number:

STTH2L06

Manufacturer:

STMicroelectronics ↗

File Size:

107.84kb

Download:

📄 Datasheet

Description:

High efficiency ultrafast diode. The STTH2L06 is using ST Turbo 2 600 V planar Pt doping technology. It is specially suited for SMPS and base drive transistor circuit

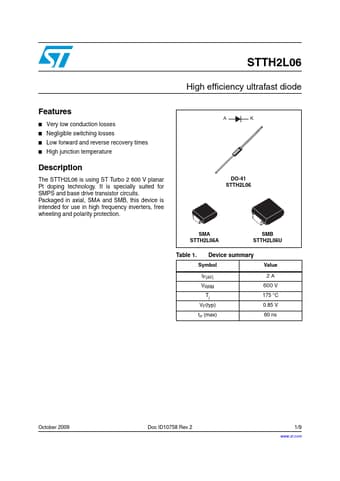

Datasheet Preview: STTH2L06 📥 Download PDF (107.84kb)
Page 2 of STTH2L06 Page 3 of STTH2L06
