STTH8R06FP - (STTH8R06x) TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER

Product Overview

ST Microelectronics

Datasheet Details

Part number	STTH8R06FP
Manufacturer	STMicroelectronics
File Size	110.27 KB
Description	(STTH8R06x) TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER
Datasheet	STTH8R06FP Datasheet
Note	This datasheet PDF includes multiple part numbers: STTH8R06FP, STTH8R06D. Please refer to the document for exact specifications by model.

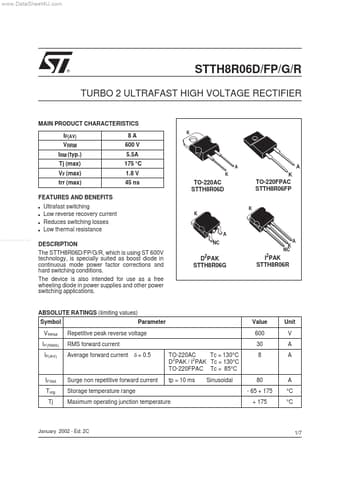

Additional preview pages of the STTH8R06FP datasheet.

Product details

Description

The STTH8R06D/FP/G/R, which is using ST 600V technology, is specially suited as boost diode in continuous mode power factor corrections and hard switching conditions.

Features

s s 8A 600 V 5.5A 175 °C 1.8 V 45 ns K A K A K TO-220AC STTH8R06D TO-220FPAC STTH8R06FP s s Ultrafast switching Low reverse recovery current Reduces switching losses Low thermal resistance K K A www. DataSheet4U. com.
