STTH8R06G

(STTH8R06x) TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER

STTH8R06G Features

* s s 8A 600 V 5.5A 175 °C 1.8 V 45 ns K A K A K TO-220AC STTH8R06D TO-220FPAC STTH8R06FP s s Ultrafast switching Low reverse recovery current Reduces switching losses Low thermal resistance K K A www.DataSheet4U.com DESCRIPTION The STTH8R06D/FP/G/R, which is using ST 600V technology, is

STTH8R06G General Description

The STTH8R06D/FP/G/R, which is using ST 600V technology, is specially suited as boost diode in continuous mode power factor corrections and hard switching conditions. The device is also intended for use as a free wheeling diode in power supplies and other power switching applications. NC A K NC D.

STTH8R06G Datasheet (110.27 KB)

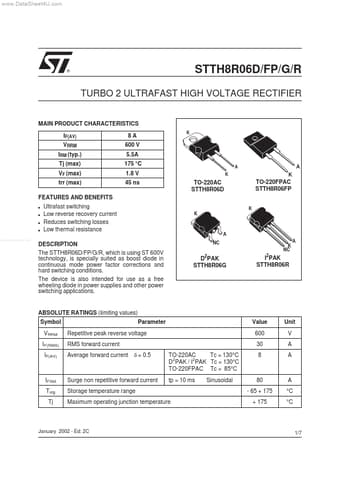

Preview of STTH8R06G PDF

Datasheet Details

Part number:

STTH8R06G

Manufacturer:

STMicroelectronics ↗

File Size:

110.27 KB

Description:

(stth8r06x) turbo 2 ultrafast high voltage rectifier.
www.DataSheet4U.com ® STTH8R06D/FP/G/R TURBO 2 ULTRAFAST HIGH VOLTAGE RECTIFIER MAIN PRODUCT CHARACTERISTICS IF(AV) VRRM IRM (typ.) Tj (max) VF (ma.
