STTH8R03DJF Datasheet - STMicroelectronics

STTH8R03DJF Ultrafast recovery diode high efficiency

High performance diode suited for high frequency DC to DC converters. Packaged in PowerFLAT 5x6, the STTH8R03DJF is optimized for use in low voltage high frequency inverters. DS8873 - Rev 2 - February 2023 For further information contact your local STMicroelectronics sales office. www.st.com STT.

STTH8R03DJF Features

* Suited for DC/DC converts

* Low losses

* High Tj

* High surge current capability

* High energy avalanche capability

* Thin package: 1 mm

* ECOPACK2 compliant Applications

* Switching diode

* SMPS

* DC/DC conv

STTH8R03DJF Datasheet (320.92 KB)

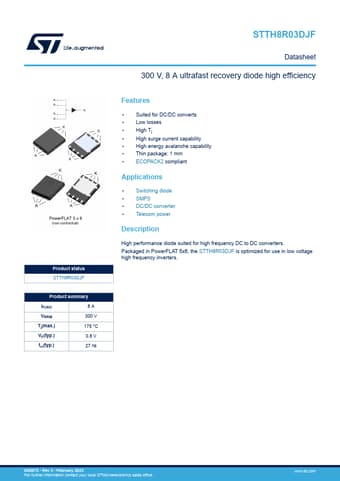

Preview of STTH8R03DJF PDF

Datasheet Details

Part number:

STTH8R03DJF

Manufacturer:

STMicroelectronics ↗

File Size:

320.92 KB

Description:

Ultrafast recovery diode high efficiency.
