STTH8S06 Ultrafast Rectifiers

ST Microelectronics

Description

www.DataSheet4U.com STTH8S06 Turbo 2 ultrafast high voltage rectifier .
ST's STTH8S06 is a state of the art ultrafast recovery diode.

📥 Download Datasheet

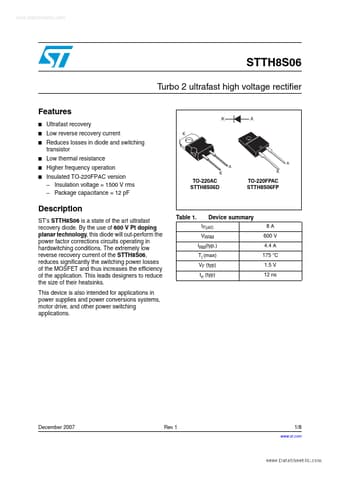

STTH8S06 Datasheet Preview — Preview of STTH8S06 PDF

Datasheet Specifications

Part number: STTH8S06
Manufacturer: STMicroelectronics ↗
File Size: 131.99 KB
Datasheet: STTH8S06_STMicroelectronics.pdf
Description: Ultrafast Rectifiers

Features

* K
* A Ultrafast recovery Low reverse recovery current Reduces losses in diode and switching transistor Low thermal resistance Higher frequency operation Insulated TO-220FPAC version
* Insulation voltage = 1500 V rms
* Package capacitance = 12 pF K

Applications

* in power supplies and power conversions systems, motor drive, and other power switching applications. Table 1. Device summary IF(AV) VRRM IRM(typ. ) Tj (max) VF (typ) trr (typ) 8A 600 V 4.4 A 175 °C 1.5 V 12 ns December 2007 Rev 1 1/8 www. st. com 8 www. DataSheet4U. com Characteristics STTH8S06 1
