STV6886 Datasheet - ST Microelectronics

LOW-COST I2C CONTROLLED DEFLECTION PROCESSOR

STV6886 Features

* General s SYNC PROCESSOR (separate or composite) s 12V SUPPLY VOLTAGE s 8V REFERENCE VOLTAGE s HOR. LOCK/UNLOCK OUTPUT s HOR. & VERT. LOCK/UNLOCK INDICATION 2 s READ/WRITE I C INTERFACE s HORIZONTAL AND VERTICAL MOIRE s B+ REGULATOR - Internal PWM generator for B+ current mode step-up converter - Sw

STV6886 General Description

The STV6886 is a monolithic integrated circuit assembled in a 32-pin shrink dual-in-line plastic package. This IC controls all the functions related to horizontal and vertical deflection in multimode or multi-frequency computer display monitors. The internal sync processor, combined with the powerfu.

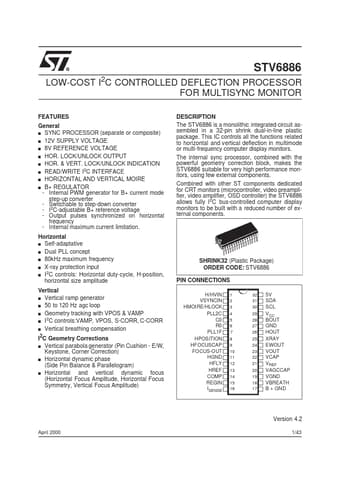

STV6886 Datasheet (486.68 KB)

Preview of STV6886 PDF

Datasheet Details

Part number:

STV6886

Manufacturer:

STMicroelectronics ↗

File Size:

486.68 KB

Description:

Low-cost i2c controlled deflection processor.
