STW45NM50FD

N-CHANNEL MOSFET

ST Microelectronics

STW45NM50FD Features

* Type STW45NM50FD VDSS 500 V RDS(on) max < 0.1 Ω ID 45 A

* 100% avalanche tested

* High dv/dt and avalanche capabilities

* Low input capacitance and gate charge

* Low gate input resistance Application

* Switching applications Description The FDmesh™ associates all advanta

STW45NM50FD General Description

The FDmesh™ associates all advantages of reduced on-resistance and fast switching with an intrinsic fast-recovery body diode. It is therefore strongly recommended for bridge topologies, in particular ZVS phase-shift converters. 3 2 1 TO-247 Figure 1. Internal schematic diagram $ ' Table 1. .

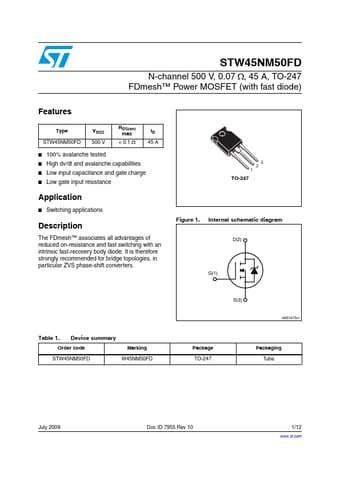

STW45NM50FD Datasheet (322.21 KB)
