STW45N60DM6

N-CHANNEL MOSFET

STMicroelectronics

STW45N60DM6 Features

* Order code VDS RDS(on) max. ID STP45N60DM6 STW45N60DM6 600 V 0.099 Ω 30 A 3 2 1 TO-220 3 2 1 TO-247 Figure 1: Internal schematic diagram

* Fast-recovery body diode

* Lower RDS(on) x area vs previous generation

* Low gate charge, input capacitance and resistance

* 100% ava

STW45N60DM6 General Description

These high voltage N-channel Power MOSFETs are part of the MDmesh™ DM6 fast recovery diode series. Compared with the previous MDmesh fast generation, DM6 combines very low recovery charge (Qrr), recovery time (trr) and excellent improvement in RDS(on)
* area with one of the most effective switch.

STW45N60DM6 Datasheet (817.99 KB)

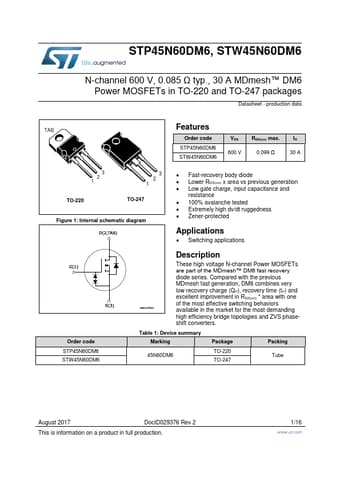

STW45N60DM6 Datasheet Preview — Preview of STW45N60DM6 PDF

Datasheet Details

Part number:

STW45N60DM6

Manufacturer:

STMicroelectronics ↗

File Size:

817.99 KB

Description:

N-channel mosfet.
STP45N60DM6, STW45N60DM6 N-channel 600 V, 0.085 Ω typ., 30 A MDmesh™ DM6 Power MOSFETs in TO-220 and TO-247 packages Datasheet - production data TAB.
