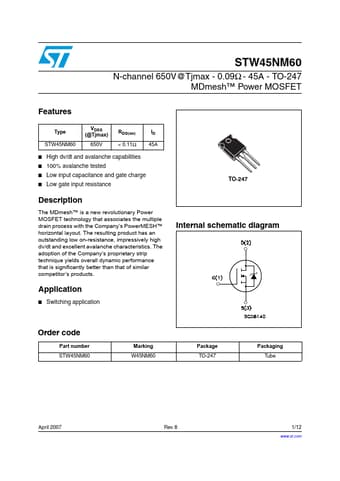

STW45NM60 Datasheet, Mosfet, ST Microelectronics

STW45NM60 Features

• Mosfet Type VDSS (@Tjmax) RDS(on) ID STW45NM60 650V < 0.11Ω 45A
• High dv/dt and avalanche capabilities
• 100% avalanche tested
• Low input capacitance and gate

PDF File Details

Part number:

STW45NM60

Manufacturer:

STMicroelectronics ↗

File Size:

319.16kb

Download:

📄 Datasheet

Description:

N-channel mosfet. The MDmesh™ is a new revolutionary Power MOSFET technology that associates the multiple drain process with the Company’s PowerMESH™ h
