STW45NM60D

Power MOSFETs

STW45NM60D Features

* Type STW45NM60D

* VDSS (@Tjmax) 650 V RDS(on) < 0.11 Ω ID 45 A High dv/dt and avalanche capabilities 100% avalanche tested Low input capacitance and gate charge Low gate input resistance 1 2 3 TO-247 Application

* Switching applications Figure 1. Internal schematic d

STW45NM60D General Description

The FDmesh™ associates all advantages of reduced on-resistance and fast switching with an intrinsic fast-recovery body diode. It is therefore strongly recommended for bridge topologies, in particular ZVS phase-shift converters. $ ' 3 !-V Table 1. Device summary Marking W45NM60D .

STW45NM60D Datasheet (604.45 KB)

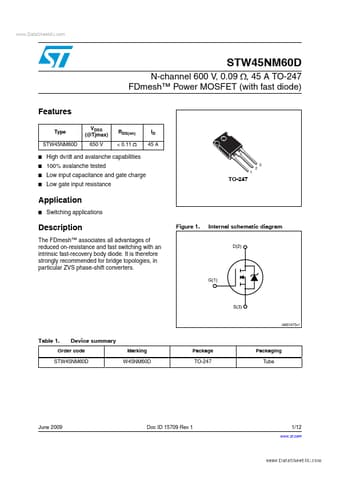

Preview of STW45NM60D PDF

Datasheet Details

Part number:

STW45NM60D

Manufacturer:

STMicroelectronics ↗

File Size:

604.45 KB

Description:

Power mosfets.
