STX93003

HIGH VOLTAGE FAST-SWITCHING PNP POWER TRANSISTOR

ST Microelectronics

STX93003 General Description

The device is manufactured using high voltage Multi-Epitaxial Planar technology for high switching speeds and medium voltage capability. It uses a Cellular Emitter structure with planar edge termination to enhance switching speeds while maintaining the wide RBSOA. The STX93003 is expressly designed .

STX93003 Datasheet (191.96 KB)

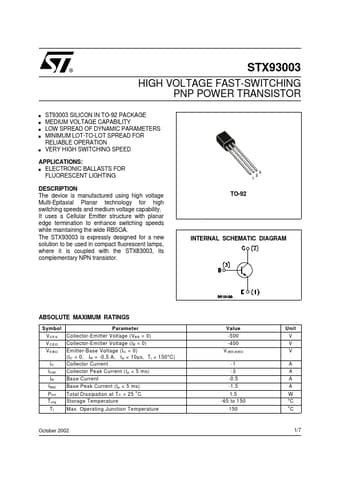

STX93003 Datasheet Preview — Preview of STX93003 PDF

Datasheet Details

Part number:

STX93003

Manufacturer:

STMicroelectronics ↗

File Size:

191.96 KB

Description:

High voltage fast-switching pnp power transistor.
www.DataSheet4U.com ® STX93003 HIGH VOLTAGE FAST-SWITCHING PNP POWER TRANSISTOR s s s s s ST93003 SILICON IN TO-92 PACKAGE MEDIUM VOLTAGE CAPABIL.
