VNQ600AP-E - QUAD CHANNEL HIGH SIDE DRIVER

VNQ600AP-E Description

www.DataSheet4U.com VNQ600AP-E QUAD CHANNEL HIGH SIDE DRIVER Table 1.General .
The VNQ600AP-E is a quad HSD formed by assembling two VND600-E chips in the same SO28 package.

VNQ600AP-E Features

* TYPE VNQ600AP-E (
* ) Per each channel Figure 1. Package Ilim 22A VCC 36 V RDS(on) (
* ) 35mΩ DC SHORT CIRCUIT CURRENT: 22A s CMOS COMPATIBLE INPUTS s PROPORTIONAL LOAD CURRENT SENSE s UNDERVOLTAGE & OVERVOLTAGE SHUT-DOWN s OVERVOLTAGE CLAMP s THERMAL SHUT-DOWN s CURRENT LIMITATION s VERY LOW

📥 Download Datasheet

Preview of VNQ600AP-E PDF

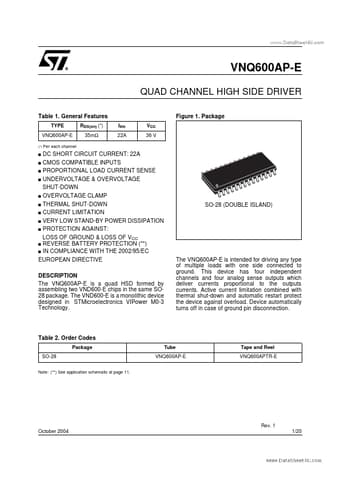

datasheet Preview Page 2 datasheet Preview Page 3
