VNQ660SP - QUAD CHANNEL HIGH SIDE SOLID STATE RELAY

Product Overview

STMicroelectronics

Datasheet Details

Part number	VNQ660SP
Manufacturer	STMicroelectronics
File Size	439.12 KB
Description	QUAD CHANNEL HIGH SIDE SOLID STATE RELAY
Datasheet	VNQ660SP Datasheet

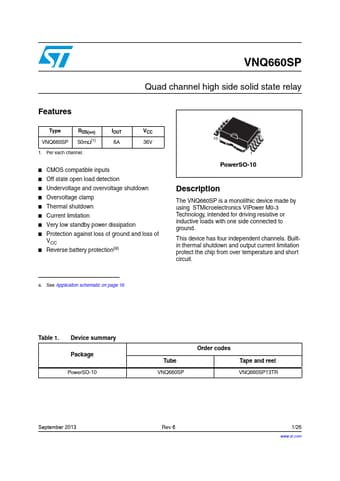

Additional preview pages of the VNQ660SP datasheet.

Product details

Description

The VNQ660SP is a monolithic device made by using| STMicroelectronics VIPower M0-3 Technology, intended for driving resistive or inductive loads with one side connected to ground.

Features

Type VNQ660SP RDS(on) 50mΩ(1) 1. Per each channel. IOUT 6A VCC 36V.
CMOS compatible inputs.
Off state open load detection.
Undervoltage and overvoltage shutdown.
Overvoltage clamp.
Thermal shutdown.
Current limitation.
Very low standby power dissipation.
Protection against loss of ground and loss of VCC.
Reverse battery protection(a) 10 1 PowerSO-10.
