VNQ600P-E - QUAD CHANNEL HIGH SIDE DRIVER

VNQ600P-E Description

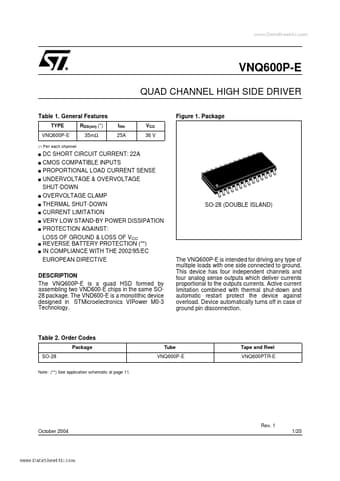

www.DataSheet4U.com VNQ600P-E QUAD CHANNEL HIGH SIDE DRIVER Table 1.General .
The VNQ600P-E is a quad HSD formed by assembling two VND600-E chips in the same SO28 package.

VNQ600P-E Features

* TYPE VNQ600P-E (
* ) Per each channel Figure 1. Package Ilim 25A VCC 36 V RDS(on) (
* ) 35mΩ DC SHORT CIRCUIT CURRENT: 22A s CMOS COMPATIBLE INPUTS s PROPORTIONAL LOAD CURRENT SENSE s UNDERVOLTAGE & OVERVOLTAGE SHUT-DOWN s OVERVOLTAGE CLAMP s THERMAL SHUT-DOWN s CURRENT LIMITATION s VERY LOW
