VNQ600 - QUAD CHANNEL HIGH SIDE SOLID STATE RELAY

Product Overview

STMicroelectronics

Part number	VNQ600
Manufacturer	STMicroelectronics
File Size	450.50 KB
Description	QUAD CHANNEL HIGH SIDE SOLID STATE RELAY
Datasheet	VNQ600 Datasheet
Additional preview pages of the VNQ600 datasheet.

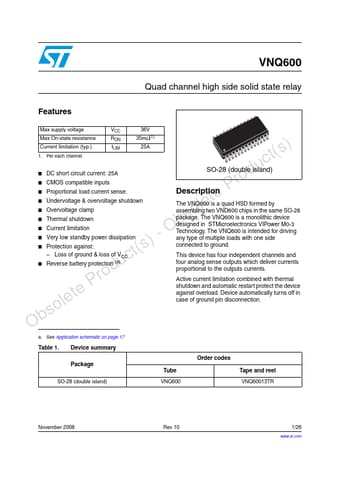

The VNQ600 is a quad HSD formed by assembling two VND600 chips in the same SO-28 package.

Max supply voltage VCC 36V Max On-state resistance )Current limitation (typ. ) t(s1. Per each channel. RON ILIM 35mΩ(1) 25A duc.
DC short circuit current: 25A ro.
CMOS compatible inputs P.
Proportional load current sense. te.
Undervoltage & overvoltage shutdown le.
Overvoltage clamp so.
Thermal shutdown b.
Current limitation - O.
Very low standby power dissipation t(s).
Protection against:.
Loss of ground & loss of VCC Obsolete Produc.
