GD100FFX120C6S IGBT

STARPOWER

Description

GD100FFX120C6S STARPOWER SEMICONDUCTOR GD100FFX120C6S 1200V/100A 6 in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

📥 Download Datasheet

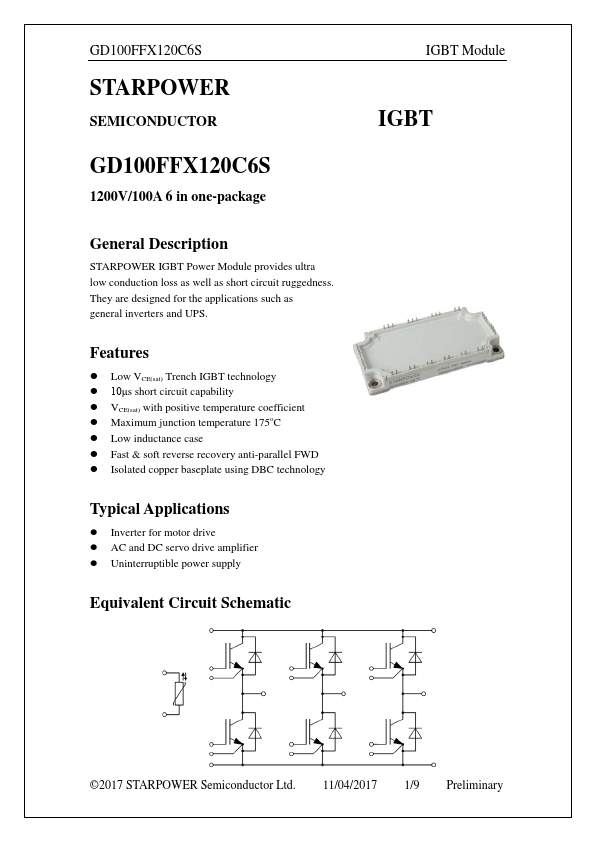

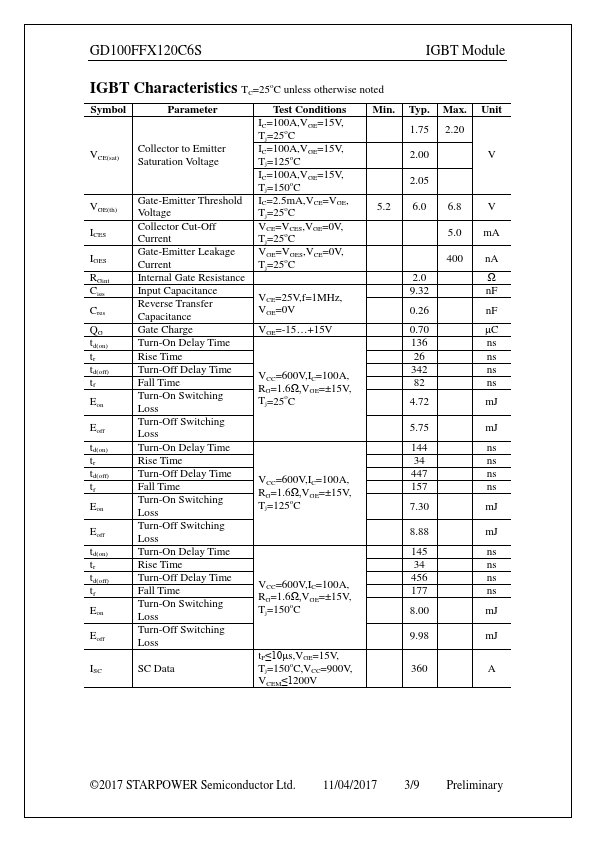

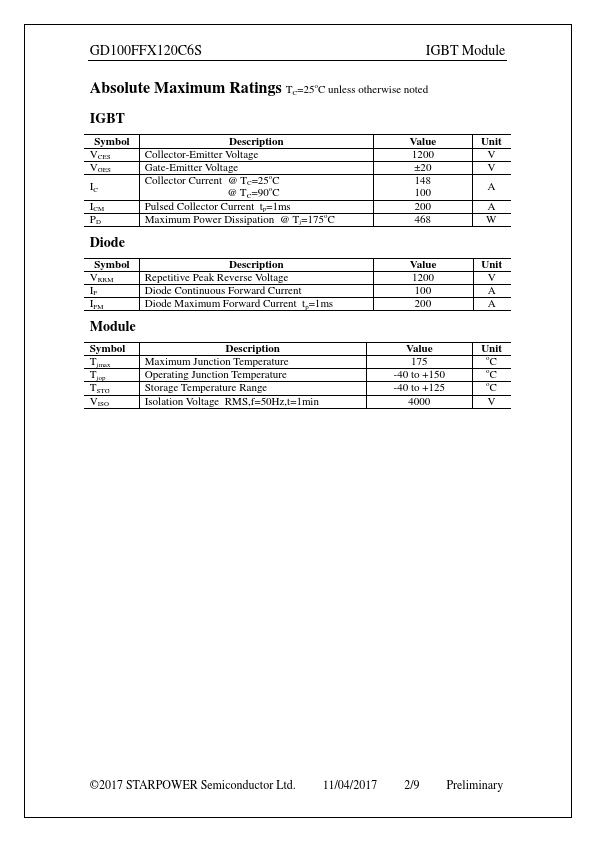

GD100FFX120C6S Datasheet Preview — Preview of GD100FFX120C6S PDF

Datasheet Specifications

Part number: GD100FFX120C6S
Manufacturer: STARPOWER
File Size: 350.57 KB
Datasheet: GD100FFX120C6S-STARPOWER.pdf
Description: IGBT

Features

* Low VCE(sat) Trench IGBT technology
* 10μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated copper baseplate using DBC technol
