GD100FFK120C6S - IGBT

Description

STARPOWER IGBT Power Module provides ultra low conduction and switching loss as well as short circuit ruggedness.

They are designed for the applications such as general inverters and UPS.

Features

NPT IGBT technology.
Low switching loss.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology Typical.

STARPOWER

📥 Download Datasheet

Datasheet Details

Part number	GD100FFK120C6S
Manufacturer	STARPOWER
File Size	122.10 KB
Description	IGBT
Datasheet	GD100FFK120C6S Datasheet

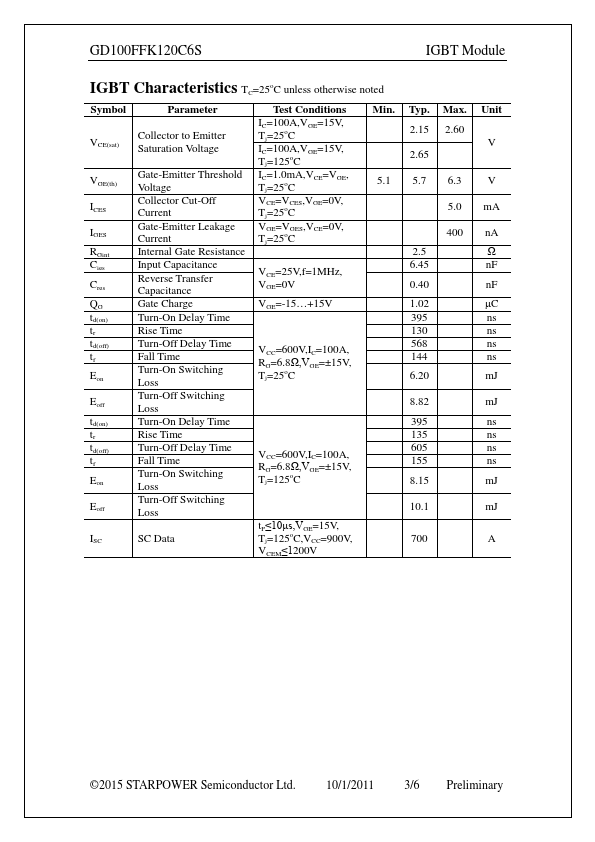

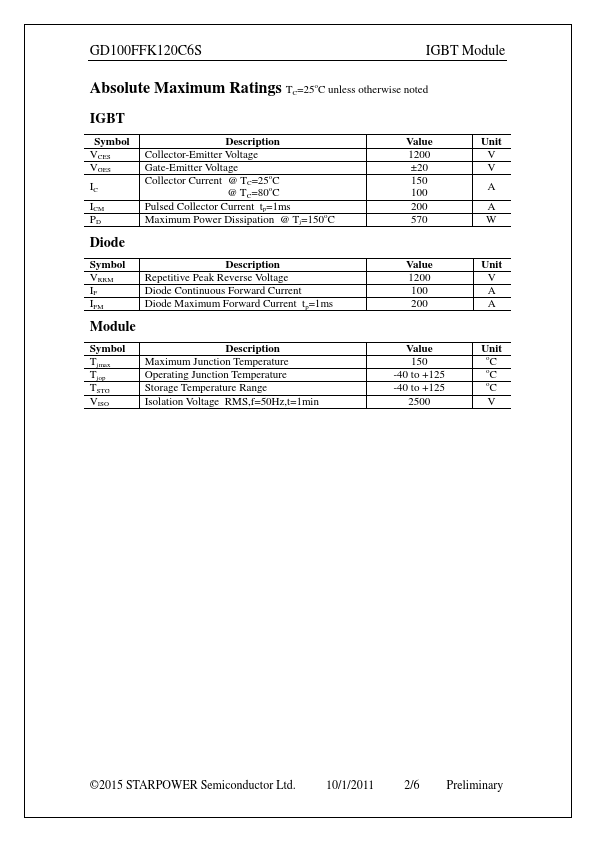

Additional preview pages of the GD100FFK120C6S datasheet.

📁 Similar Datasheet

GD103SD - SWITCHING DIODE (GTM)
GD10HF60KD - short-circuit rugged IGBT (STMicroelectronics)
GD10MPS12A - Silicon Carbide Schottky Diode (GeneSiC)
GD10MPS12E - Silicon Carbide Schottky Diode (GeneSiC)
GD10MPS12H - Silicon Carbide Schottky Diode (GeneSiC)
GD10MPS17H - Silicon Carbide Schottky Diode (GeneSiC)
GD10NC60HD - very fast IGBT (STMicroelectronics)
GD10NC60KD - short-circuit rugged IGBT (STMicroelectronics)
GD10NC60S - fast IGBT (STMicroelectronics)
GD14NC60K - IGBT (STMicroelectronics)

Other Datasheets by STARPOWER

Full PDF Text Transcription

Click to expand full text

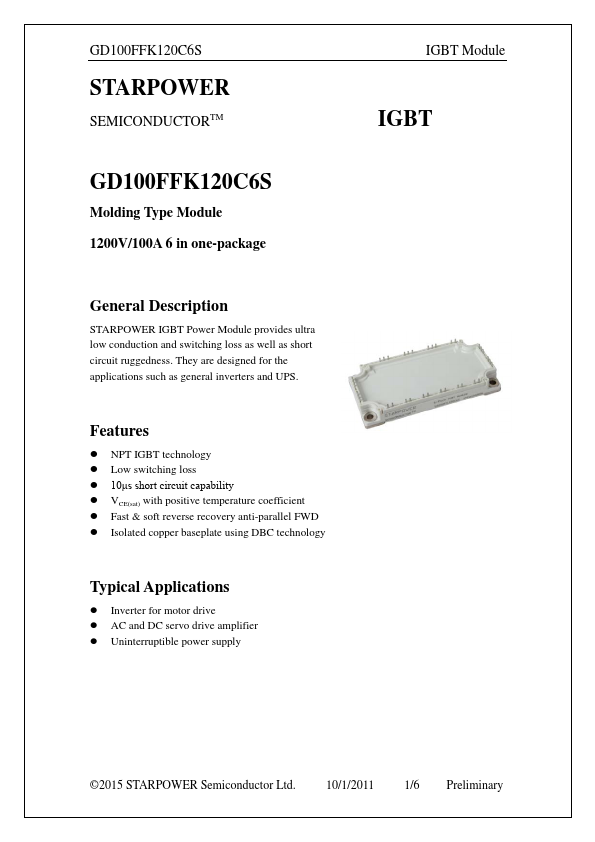

GD100FFK120C6S STARPOWER SEMICONDUCTORTM GD100FFK120C6S Molding Type Module 1200V/100A 6 in one-package IGBT Module IGBT General Description STARPOWER IGBT Power Module provides ultra low conduction and switching loss as well as short circuit ruggedness. They are designed for the applications such as general inverters and UPS. Features  NPT IGBT technology  Low switching loss  10μs short circuit capability  VCE(sat) with positive temperature coefficient  Fast & soft reverse recovery anti-parallel FWD  Isolated copper baseplate using DBC technology Typical Applications  Inverter for motor drive  AC and DC servo drive amplifier  Uninterruptible power supply ©2015 STARPOWER Semiconductor Ltd.
