GD10PWX65F1S_B22 IGBT

STARPOWER

Description

GD10PWX65F1S_B22 STARPOWER SEMICONDUCTOR GD10PWX65F1S_B22 650V/10A in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

📥 Download Datasheet

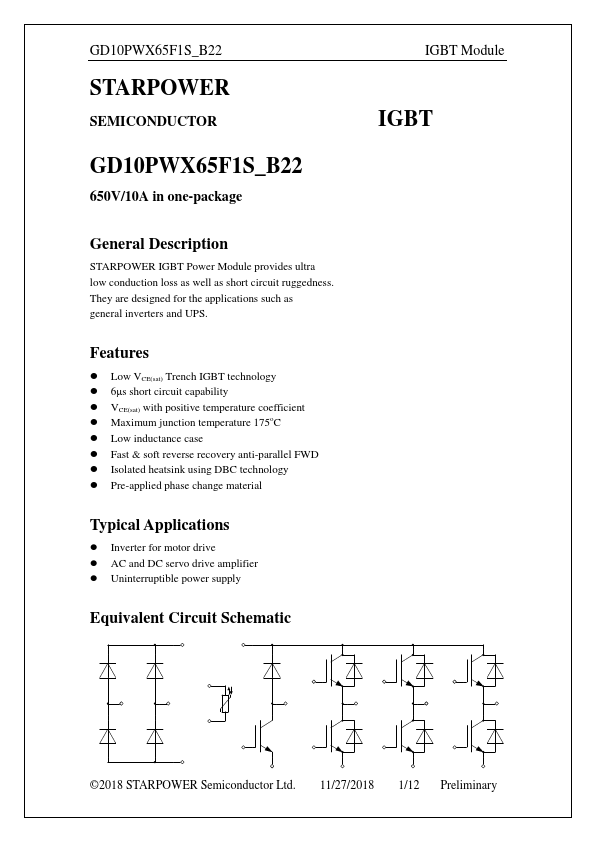

GD10PWX65F1S_B22 Datasheet Preview — Preview of GD10PWX65F1S_B22 PDF

Datasheet Specifications

Part number: GD10PWX65F1S_B22
Manufacturer: STARPOWER
File Size: 237.38 KB
Datasheet: GD10PWX65F1S_B22-STARPOWER.pdf
Description: IGBT

Features

* Low VCE(sat) Trench IGBT technology
* 6μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Low inductance case
* Fast & soft reverse recovery anti-parallel FWD
* Isolated heatsink using DBC technology
