GD30MLX65F1SF_B22 IGBT

STARPOWER

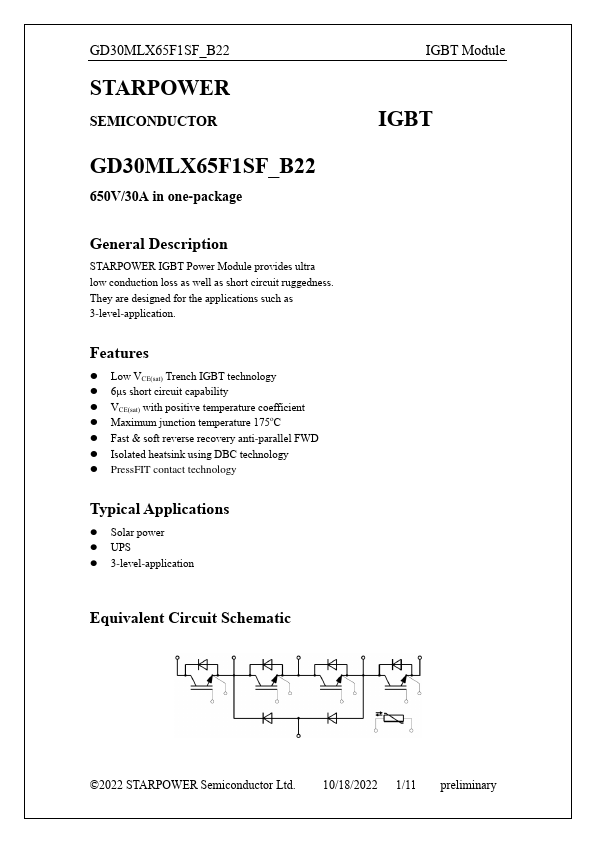

GD30MLX65F1SF_B22 Description

GD30MLX65F1SF_B22 STARPOWER SEMICONDUCTOR GD30MLX65F1SF_B22 650V/30A in one-package General .
STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

GD30MLX65F1SF_B22 Features

* Low VCE(sat) Trench IGBT technology
* 6μs short circuit capability
* VCE(sat) with positive temperature coefficient
* Maximum junction temperature 175oC
* Fast & soft reverse recovery anti-parallel FWD
* Isolated heatsink using DBC technology
* PressFIT contact technolo

📥 Download Datasheet

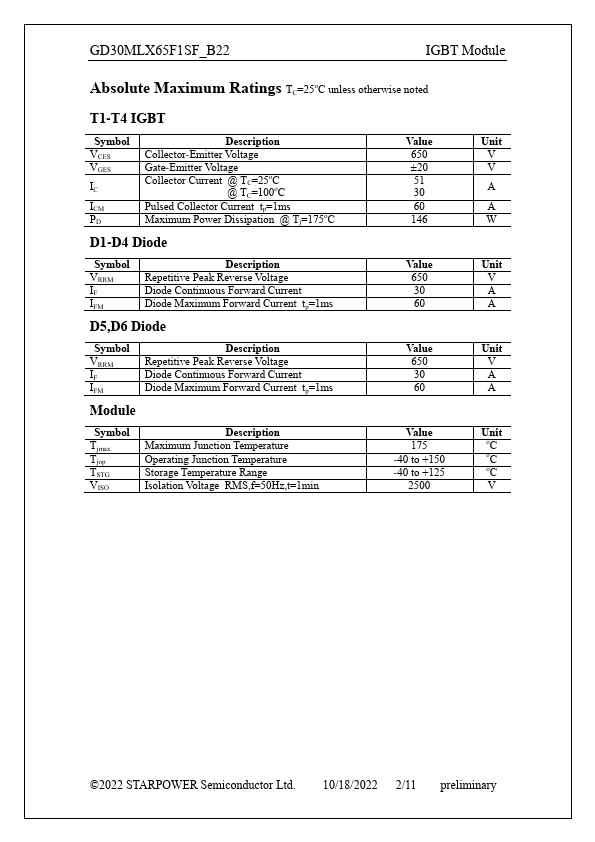

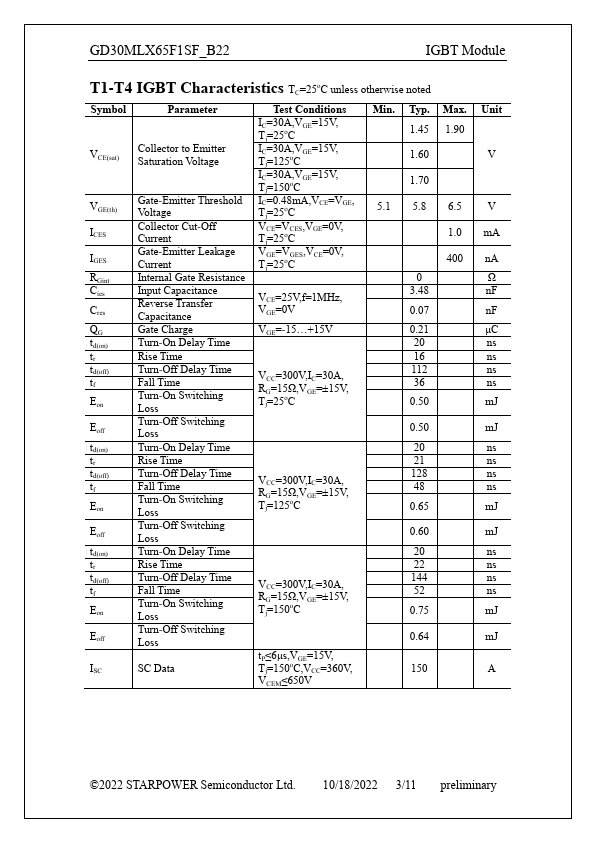

GD30MLX65F1SF_B22 Datasheet Preview — Preview of GD30MLX65F1SF_B22 PDF

Datasheet Details

Part number: GD30MLX65F1SF_B22
Manufacturer: STARPOWER
File Size: 568.89 KB
Datasheet: GD30MLX65F1SF_B22-STARPOWER.pdf
Description: IGBT
