GD75PIY120C6SNF - IGBT

STARPOWER

📥 Download Datasheet

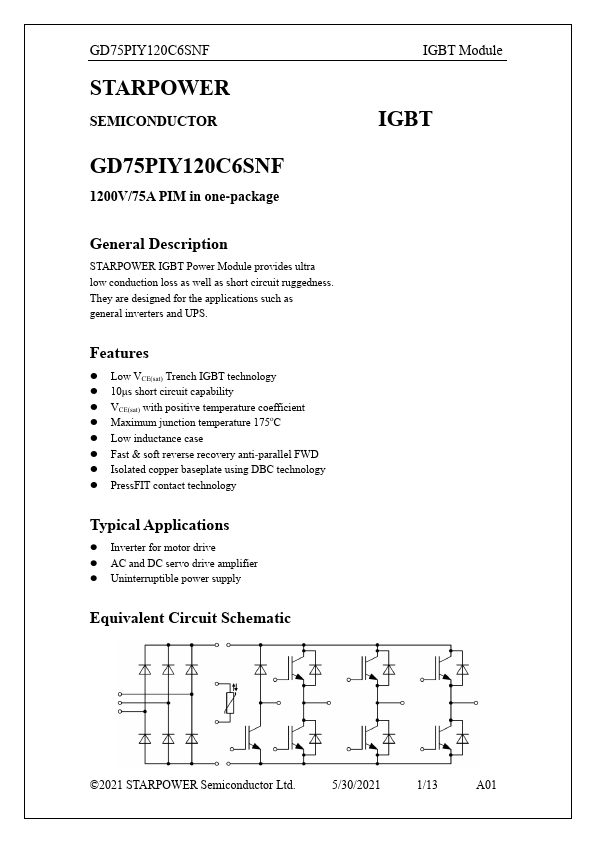

GD75PIY120C6SNF Datasheet Preview — Preview of GD75PIY120C6SNF PDF

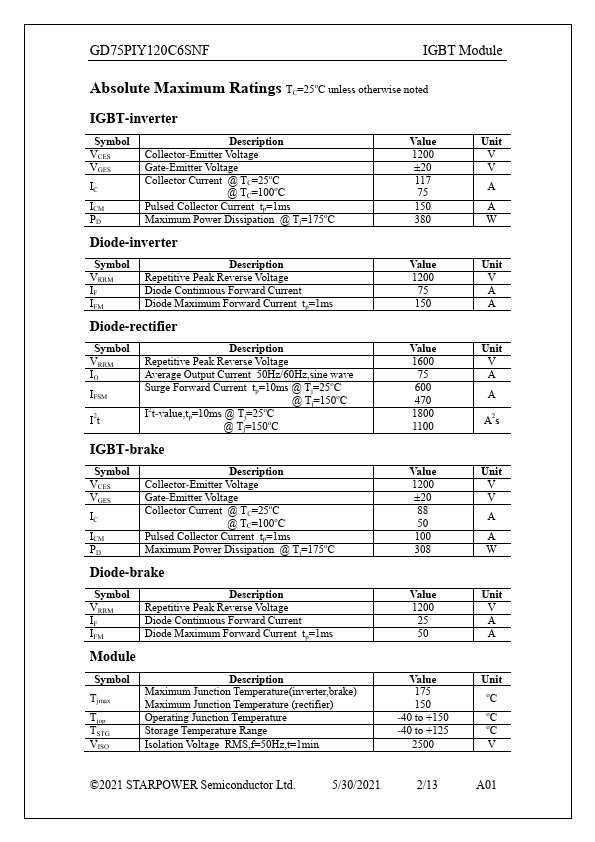

datasheet Preview Page 2

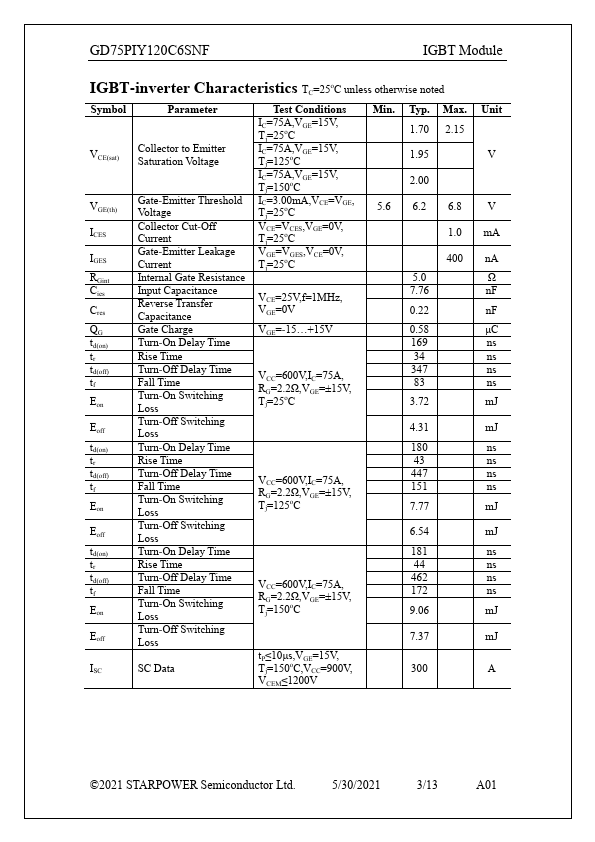

datasheet Preview Page 3

Datasheet Details

Part number	GD75PIY120C6SNF
Manufacturer	STARPOWER
File Size	728.45 KB
Description	IGBT
Datasheet	GD75PIY120C6SNF-STARPOWER.pdf

GD75PIY120C6SNF Product details

Description

STARPOWER IGBT Power Module provides ultra low conduction loss as well as short circuit ruggedness.

Features

Low VCE(sat) Trench IGBT technology.
10μs short circuit capability.
VCE(sat) with positive temperature coefficient.
Maximum junction temperature 175oC.
Low inductance case.
Fast & soft reverse recovery anti-parallel FWD.
Isolated copper baseplate using DBC technology.
PressFIT contact technology Typical.
