11NK100Z, STW11NK100Z

STW11NK100Z STW11NK100Z N-channel 1000V - 1.1Ω - 8.3A - TO-247 Zener - Protected SuperMESH™ PowerMOSFET General .
The SuperMESH™ series is obtained through an extreme optimization of ST’s well established strip-based PowerMESH™ layout.

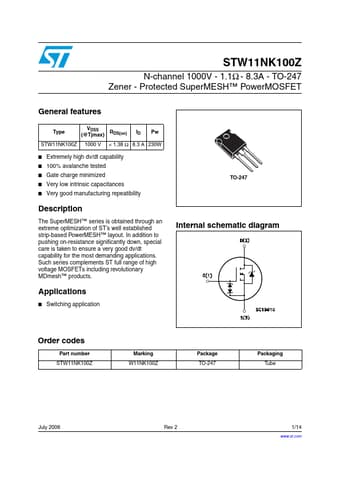

datasheet Preview Page 1 from Datasheet4u.com

11NK100Z-STMicroelectronics.pdf

11NK100Z Datasheet Preview — Preview of 11NK100Z PDF

Datasheet Details

Part number:

11NK100Z

Manufacturer:

STMicroelectronics ↗

File Size:

287.24 KB

Description:

STW11NK100Z

Features

* Type VDSS (@Tjmax) RDS(on) ID Pw STW11NK100Z 1000 V < 1.38 Ω 8.3 A 230W
* Extremely high dv/dt capability
* 100% avalanche tested
* Gate charge minimized
* Very low intrinsic capacitances

Applications

* Such series complements ST full range of high voltage MOSFETs including revolutionary MDmesh™ products. Applications
* Switching application TO-247 Internal schematic diagram Order codes Part number STW11NK100Z Marking W11NK100Z Package TO-247 Packaging Tube July 2006 Rev 2 1/14 www. st
