27C512 UV EPROM and OTP EPROM

27C512 Description

M27C512 512 Kbit (64K x8) UV EPROM and OTP EPROM .

27C512 Features

* 5V ± 10% supply voltage in read operation
* Access time: 45 ns
* Low power “CMOS” consumption:
* Active current 30 mA
* Standby current 100 µA
* Programming voltage: 12.75 V ± 0.25 V
* Programming time around 6 s.
* Electronic Signature
* Manufacture

27C512 Applications

* where fast turn-around and pattern experimentation are important requirements and is organized as 65536 by 8 bits. The FDIP28W (window ceramic frit-seal package) has transparent lid which allows the user to expose the chip to ultraviolet light to erase the bit pattern. A new pattern can then be writ

📥 Download Datasheet

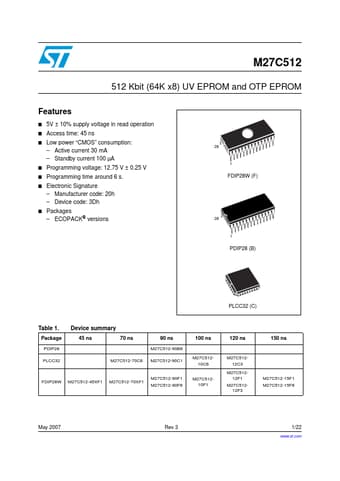

Preview of 27C512 PDF
datasheet Preview Page 2 datasheet Preview Page 3
