2STR1160 - Low voltage fast-switching NPN power transistor

STMicroelectronics

📥 Download Datasheet

2STR1160 Datasheet Preview — Preview of 2STR1160 PDF

Datasheet Details

Part number	2STR1160
Manufacturer	STMicroelectronics
File Size	472.50 KB
Description	Low voltage fast-switching NPN power transistor
Datasheet	2STR1160_STMicroelectronics.pdf

2STR1160 Product details

Description

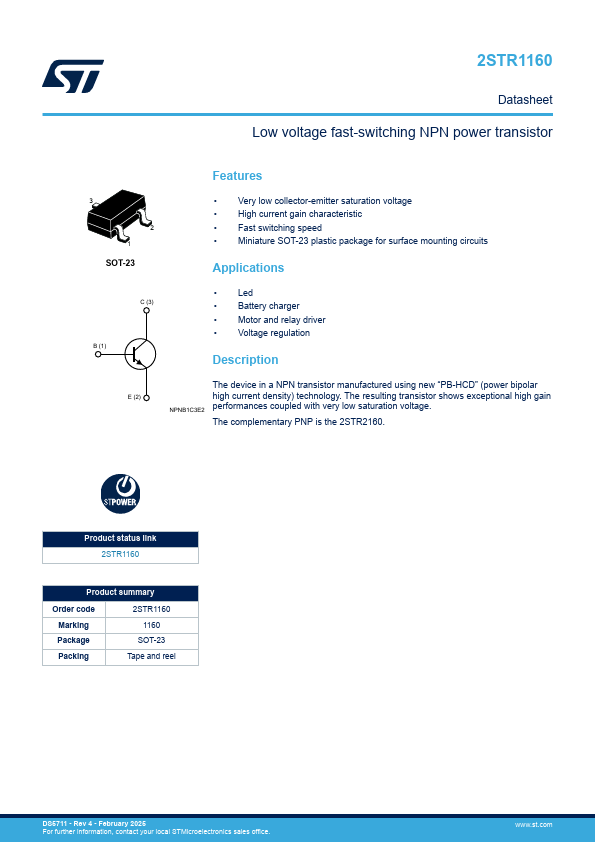

The device in a NPN transistor manufactured using new “PB-HCD” (power bipolar E (2) high current density) technology.The resulting transistor shows exceptional high gain NPNB1C3E2 performances coupled with very low saturation voltage.The complementary PNP is the 2STR2160. Product status link 2STR1160 Product summary Order code 2STR1160 Marking 1160 Package SOT-23 Packing Tape and reel DS5711 - Rev 4 - February 2025 For further information, contact your local STMicroelectronics

Features

3 2 1 SOT-23.
Very low collector-emitter saturation voltage.
High current gain characteristic.
Fast switching speed.
Miniature SOT-23 plastic package for surface mounting circuits.
