2STR2160

Low voltage fast-switching PNP power transistor

STMicroelectronics

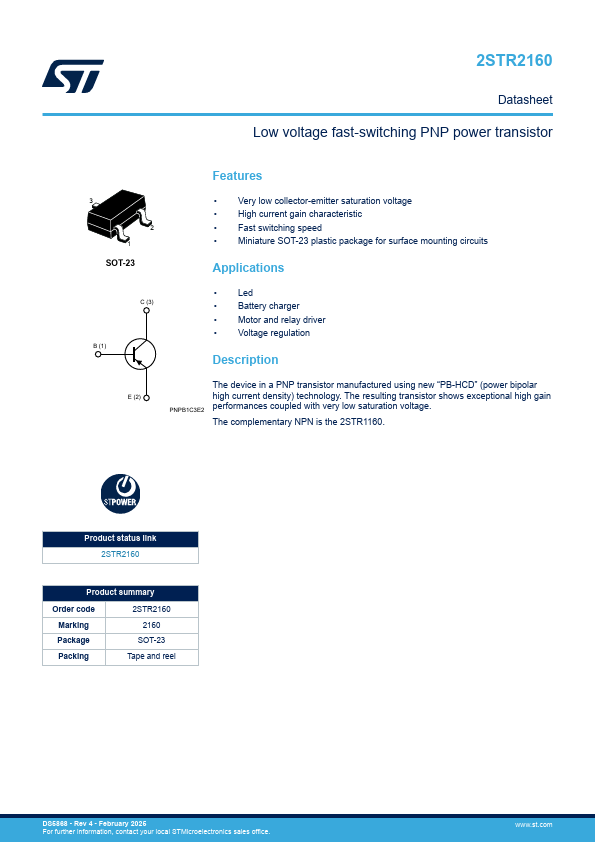

2STR2160 Features

* Very low collector-emitter saturation voltage

* High current gain characteristic

* Fast switching speed

* Miniature SOT-23 plastic package for surface mounting circuits Applications

* LED

* Battery charger

* Motor and relay driver

* Voltage regulation Description Th

2STR2160 General Description

The device in a PNP transistor manufactured using new “PB-HCD” (power bipolar high current density) technology. The resulting transistor shows exceptional high gain performances coupled with very low saturation voltage. The complementary NPN is the 2STR1160. Order code 2STR2160 Table 1: Device sum.

2STR2160 Datasheet (293.10 KB)

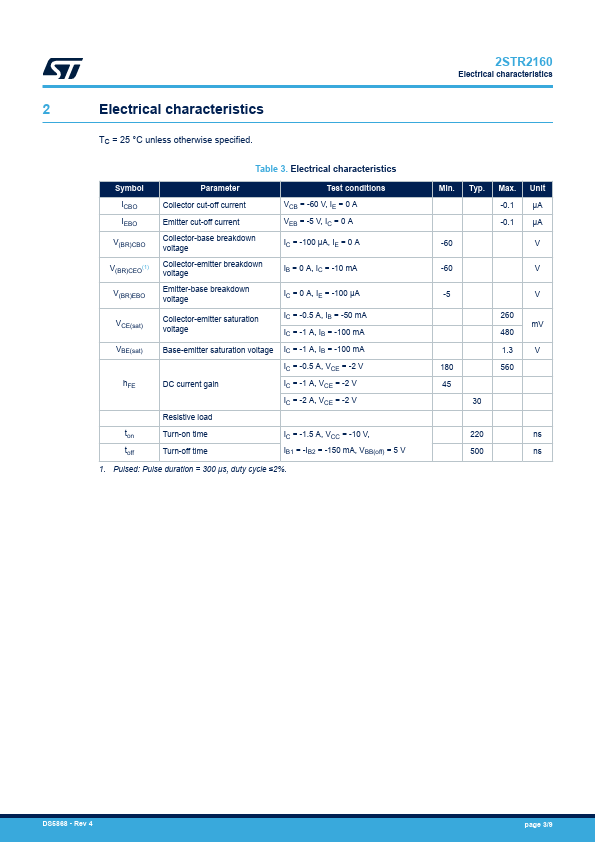

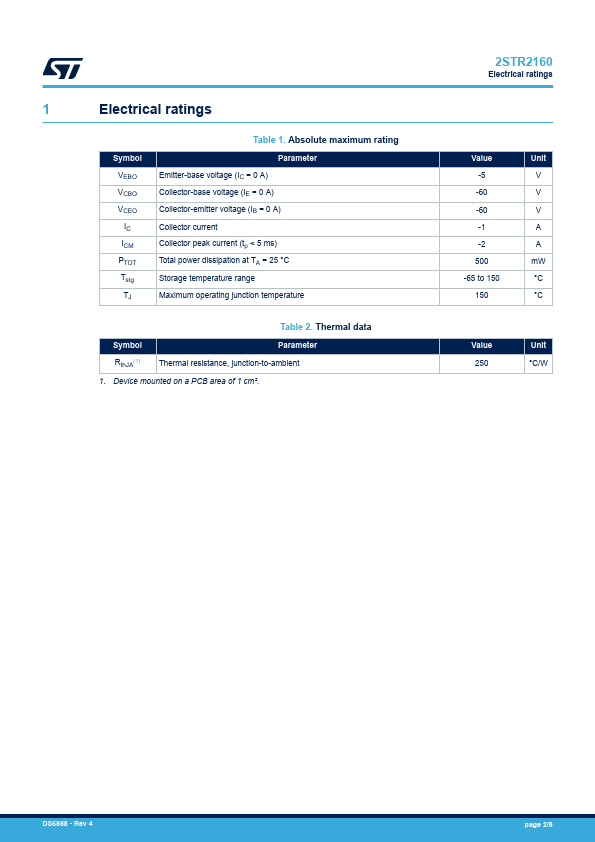

2STR2160 Datasheet Preview — Preview of 2STR2160 PDF

Datasheet Details

Part number:

2STR2160

Manufacturer:

STMicroelectronics ↗

File Size:

293.10 KB

Description:

Low voltage fast-switching pnp power transistor.
