54HC354, 8-CHANNEL MULTIPLEXER/REGISTER

The M54/74HC354 is a high speed CMOS 8-CHANNEL MULTIPLEXER/REGISTER (3-state) fabricated in silicon gate C2MOS technology.

It has the same high speed performance of LSTTL combined with true CMOS low consumption.

This device contains an 8 channel digital multiplexer with an 8-bit input data register

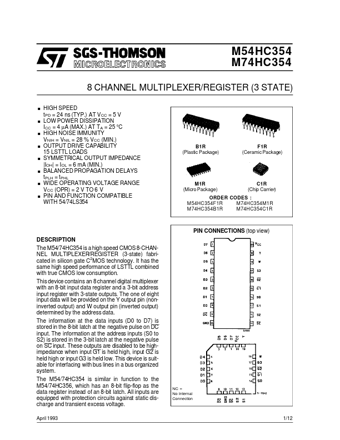

M54HC354 M74HC354 8 CHANNEL MULTIPLEXER/REGISTER (3 STATE) .

HIGH SPEED tPD = 24 ns (TYP.) AT VCC = 5 V .

LOW POWER DISSIPATION ICC = 4 µA (MAX.) AT TA = 25 °C .

HIGH NOISE IMMUNITY VNIH = VNIL = 28 % VCC (MIN.) .

OUTPUT DRIVE CAPABILITY 15 LSTTL LOADS .

SYMMETRICAL OUTPUT IMPEDANCE |IOH| = IOL = 6 mA (MIN.) .

BALANCED PROPAGATION DELAYS tPLH = tPHL .

WIDE OPERATING VOLTAGE RANGE VCC (OPR) = 2 V TO 6 V .

PIN AND FUNCTION COMPATIBLE WITH 54/74LS354 B1R (Plastic Package) F1R (Ceramic Package)
