HCC4514B Datasheet, Decoder, STMicroelectronics

HCC4514B Features

• Decoder
• ESCC qualified
• 18 V Absolute maximum ratings
• 3 V to 15 V operating voltage
• Hermetic packages
• Rad-hard 100 krad (Si) TID
• SEL i

PDF File Details

Part number:

HCC4514B

Manufacturer:

STMicroelectronics ↗

File Size:

332.43kb

Download:

📄 Datasheet

Description:

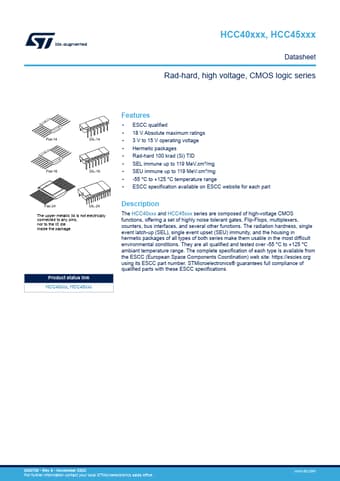

Rad-hard 4-bit latch / 4-to-16-line decoder. The HCC40xxx and HCC45xxx series are composed of high-voltage CMOS functions, offering a set of highly noise tolerant gates, Flip-Flo
