HCC4515B Datasheet (261.27 KB)
HCC4515B
261.27 KB

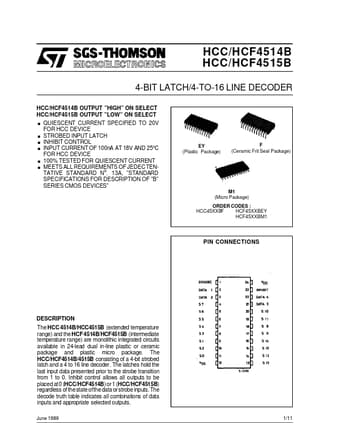

4-bit latch/4-to-16 line decoder.
HCC/HCF4514B HCC/HCF4515B
4-BIT LATCH/4-TO-16 LINE DECODER
HCC/HCF4514B OUTPUT ”HIGH” ON SELECT HCC/HCF4515B OUTPUT ”LOW” ON SELECT
. . . . . .
QUIE.
