HCC4517B - DUAL 64-STAGE STATIC SHIFT REGISTER

Datasheet Summary

Description

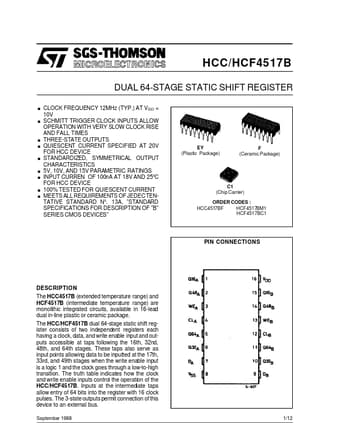

OF ”B” SERIES CMOS DEVICES” EY (Plastic Package) F (Ceramic Package) C1 (Chip Carrier) ORDER CODES : HCC4517BF HCF4517BM1 HCF4517BC1 PIN CONNECTIONS DESCRIPTION The HCC4517B (extended temperature range) and HCF4517B (intermediate temperature range) are monolithic integrated circuits, available

📥 Download Datasheet

Datasheet preview – HCC4517B

Datasheet Details

Part number HCC4517B
Manufacturer STMicroelectronics
File Size 244.37 KB
Description DUAL 64-STAGE STATIC SHIFT REGISTER
Datasheet download datasheet HCC4517B Datasheet
Additional preview pages of the HCC4517B datasheet.

📁 Similar Datasheet

  • HCC1000 - Hi-Reliability RAD Capable Optoisolator (TT)
  • HCC1001 - Hi-Reliability RAD Capable Optoisolator (TT)
  • HCC1002 - Hi-Reliability RAD Capable Optoisolator (TT)
  • HCC1210Bxxxx - Multilayer Ceramic Chip Capacitors (Holy Stone Enterprise)
  • HCC240 - (HCC240 / HCC242) Surface Mount Optically Coupled Isolator (OPTEK Technologies)
  • HCC242 - (HCC240 / HCC242) Surface Mount Optically Coupled Isolator (OPTEK Technologies)
  • HCC640 - Surface Mount Optically Coupled Isolator (OPTEK Technologies)
  • HCC640B - Surface Mount Optically Coupled Isolator (OPTEK Technologies)
Other Datasheets by STMicroelectronics
  • HCC4511B - BCD-TO-SEVEN SEGMENT LATCH/DECODER/DRIVER
  • HCC4512B - Rad-hard 8-channel data selec
  • HCC4514B - Rad-hard 4-bit latch / 4-to-16-line decoder
  • HCC4515B - 4-BIT LATCH/4-TO-16 LINE DECODER
  • HCC4518B - DUAL UP-COUNTERS
  • HCC4519B - 4 - BIT AND/OR SELECTOR
  • HCC4502B - STROBED HEX INVERTER/BUFFER
  • HCC4520B - Rad-hard dual binary up-down counter

Full PDF Text Transcription

Click to expand full text
HCC/HCF4517B DUAL 64-STAGE STATIC SHIFT REGISTER . . . . . . . . . CLOCK FREQUENCY 12MHz (TYP.) AT VDD = 10V SCHMITT TRIGGER CLOCK INPUTS ALLOW OPERATION WITH VERY SLOW CLOCK RISE AND FALL TIMES THREE-STATE OUTPUTS QUIESCENT CURRENT SPECIFIED AT 20V FOR HCC DEVICE STANDARDIZED, SYMMETRICAL OUTPUT CHARACTERISTICS 5V, 10V, AND 15V PARAMETRIC RATINGS INPUT CURREN OF 100nA AT 18V AND 25°C FOR HCC DEVICE 100% TESTED FOR QUIESCENT CURRENT MEETS ALL REQUIREMENTS OF JEDEC TENTATIVE STANDARD N°.
