IRF840 - N-Channel Power MOSFET

IRF840 Description

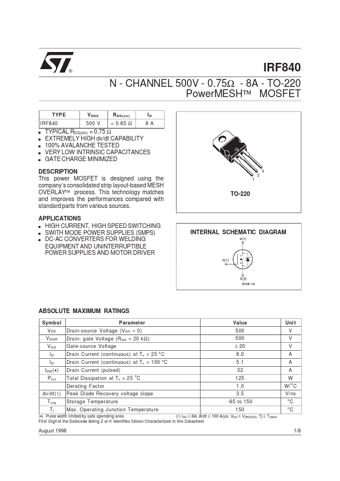

® IRF840 N - CHANNEL 500V - 0.75Ω - 8A - TO-220 PowerMESH™ MOSFET TYPE IRF840 s s s s s V DSS 500 V R DS(on) < 0.85 Ω ID 8 A TYPICAL RDS(on) = 0.
This power MOSFET is designed using the company’s consolidated strip layout-based MESH OVERLAY™ process.

IRF840 Applications

* s HIGH CURRENT, HIGH SPEED SWITCHING s SWITH MODE POWER SUPPLIES (SMPS) s DC-AC CONVERTERS FOR WELDING EQUIPMENT AND UNINTERRUPTIBLE POWER SUPPLIES AND MOTOR DRIVER 1 TO-220 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS V DGR V GS ID ID IDM (
* ) P t ot dv/dt( 1 ) T stg
