IRF840A - Power MOSFET

IRF840A Description

Power MOSFET IRF840A, SiHF840A Vishay Siliconix PRODUCT SUMMARY VDS (V) RDS(on) () Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration 500 VGS = 10 V .

IRF840A Features

* Low Gate Charge Qg Results in Simple Drive Requirement Available
* Improved Gate, Avalanche and Dynamic dV/dt RoHS
* Ruggedness COMPLIANT
* Fully Characterized Capacitance and Avalanche Voltage and Current
* Effective Coss Specified
* Compliant to

IRF840A Applications

* Switch Mode Power Supply (SMPS)
* Uninterruptable Power Supply
* High Speed Power Switching TYPICAL SMPS TOPOLOGIES
* Two Transistor Forward
* Half Bridge
* Full Bridge ORDERING INFORMATION Package Lead (Pb)-free SnPb TO-220AB IRF840APbF SiHF840A-

📥 Download Datasheet

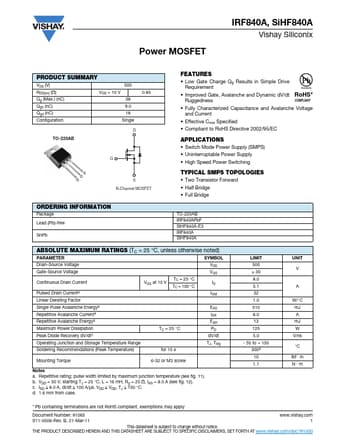

Preview of IRF840A PDF
datasheet Preview Page 2 datasheet Preview Page 3
