IRF840AL Power MOSFET

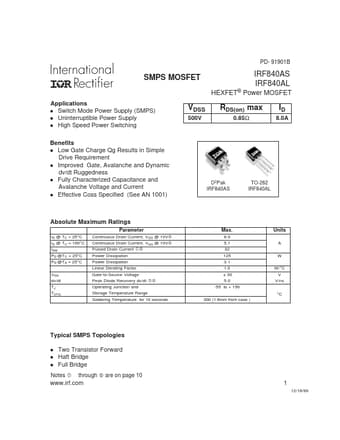

PD- 91901B SMPS MOSFET IRF840AS IRF840AL HEXFET® Power MOSFET Applications Switch Mode Power Supply (SMPS) l Uninterruptible Power Supply l High Speed Power Switching l VDSS 500V RDS(on) max 0.85Ω ID 8.0A Benefits Low Gate Charge Qg Results in Simple Drive Requirement l Improved Gate, Avalanche and Dynamic dv/dt Ruggedness l Fully Characterized Capacitance and Avalanche Voltage and Current l Effective Coss Specified (See AN 1001) l D2Pak IRF840AS TO-262 IRF840AL Absolute Maximum Rating.

IRF840AL Features

* U R RS . LE AD AS SIG N M E N TS 1 - G ATE 2 - D RA IN 3 - SO U R C E 8 .89 (.35 0) 17 .78 (.70 0) 3.81 (.1 5 0) 2.0 8 (.08 2) 2X 2.5 4 (.100 ) 2X D2Pak Part Marking Information IN TE R N A TIO N A L R E C T IF IE R LO G O A S S E M B LY LO T C O D E PART NUM BER F530S 9 24 6 9B 1M A DATE C
