M28F201 Datasheet - STMicroelectronics

M28F201 - 2 Mb FLASH MEMORY

The M28F201 FLASH Memory product is a nonvolatile memories which may be erased electrically at the chip level and programmed byte-by-byte.

It is organised as 256K bytes.

It uses a command register architecture to select the operating modes and thus provide a simple microprocessor interface.

The M28F

M28F201 2 Mb (256K x 8, Chip Erase) FLASH MEMORY 5V ± 10% SUPPLY VOLTAGE 12V PROGRAMMING VOLTAGE FAST ACCESS TIME: 70ns BYTE PROGRAMMING TIME: 10µs typical ELECTRICAL CHIP ERASE in 1s RANGE LOW POWER CONSUMPTION Active Current: 15mA typical Stand-by Current: 10µA typical 10,000 PROGRAM/ERASE CYCLES INTEGRATED ERASE/PROGRAM-STOP TIMER OTP COMPATIBLE PACKAGES and PINOUTS ELECTRONIC SIGNATURE Manufacturer Code: 20h Device Code: F4h PLCC32 (K) Figure 1.

Log

M28F201-STMicroelectronics.pdf

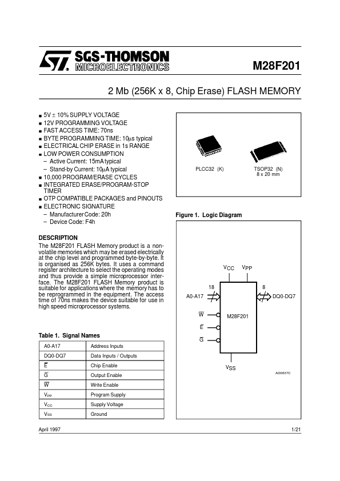

Preview of M28F201 PDF
M28F201 Datasheet Preview Page 2 M28F201 Datasheet Preview Page 3

Datasheet Details

Part number:

M28F201

Manufacturer:

STMicroelectronics ↗

File Size:

175.85 KB

Description:

2 mb flash memory.
