M28F256 Datasheet - STMicroelectronics

M28F256 - 256 Kbit Flash Memory

The M28F256 Flash memory is a non-volatile memory that may be erased electrically at the chip level and programmed by byte.

It is organised as 32 Kbytes of 8 bits.

It uses a command register architectureto select the operatingmodes and thus provides a simple microprocessor interface.

The device is o

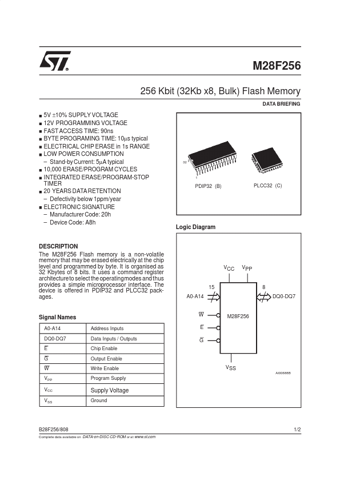

M28F256 256 Kbit (32Kb x8, Bulk) Flash Memory 5V ±10% SUPPLY VOLTAGE 12V PROGRAMMING VOLTAGE FAST ACCESS TIME: 90ns BYTE PROGRAMING TIME: 10µs typical ELECTRICAL CHIP ERASE in 1s RANGE LOW POWER CONSUMPTION Stand-by Current: 5µA typical 10,000 ERASE/PROGRAM CYCLES INTEGRATED ERASE/PROGRAM-STOP TIMER 20 YEARS DATA RETENTION Defectivity below 1ppm/year ELECTRONIC SIGNATURE Manufacturer Code: 20h Device Code: A8h 32 1 PDIP32 (B) Logic Diagram DATA BRIEFIN

M28F256-STMicroelectronics.pdf

Preview of M28F256 PDF
M28F256 Datasheet Preview Page 2

Datasheet Details

Part number:

M28F256

Manufacturer:

STMicroelectronics ↗

File Size:

17.53 KB

Description:

256 kbit flash memory.
