MMBT2222A SMALL SIGNAL NPN TRANSISTOR

MMBT2222A Description

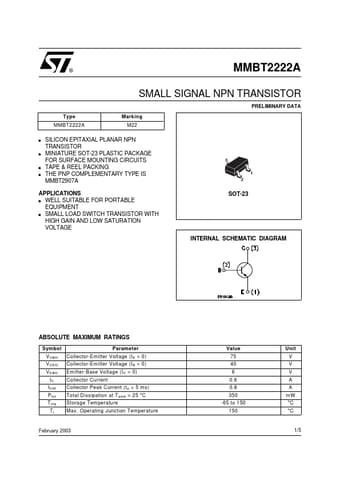

® MMBT2222A SMALL SIGNAL NPN TRANSISTOR PRELIMINARY DATA Type MMBT2222A s Marking M22 s s s SILICON EPITAXIAL PLANAR NPN TRANSISTOR MINIATURE SO.

MMBT2222A Applications

* WELL SUITABLE FOR PORTABLE EQUIPMENT s SMALL LOAD SWITCH TRANSISTOR WITH HIGH GAIN AND LOW SATURATION VOLTAGE s INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V CBO V CEO V EBO IC I CM P tot T stg Tj Parameter Collector-Emitter Voltage (I E = 0) Collector-Emitter Voltage (I B = 0) Emit
