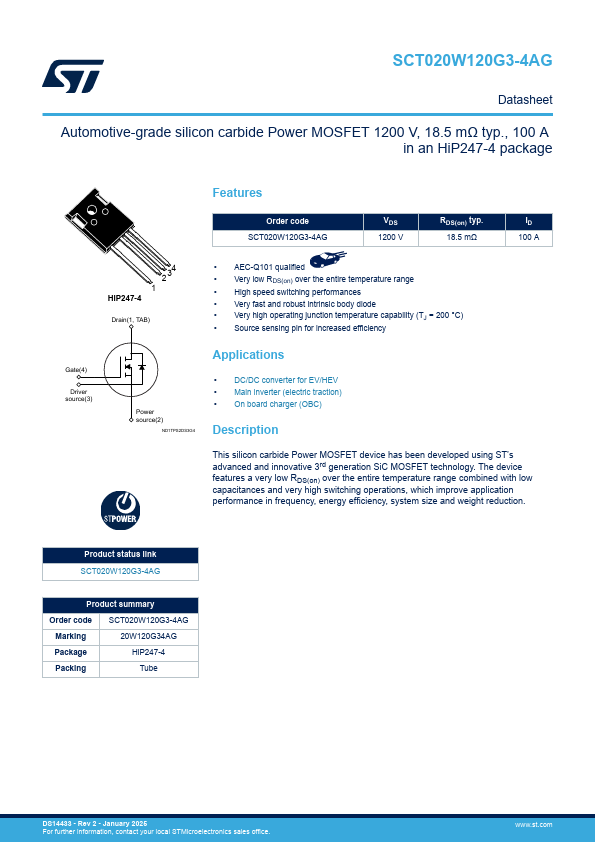

SCT020W120G3-4AG Datasheet, Mosfet, STMicroelectronics

SCT020W120G3-4AG Features

• Mosfet Order code SCT020W120G3-4AG VDS 1200 V RDS(on) typ. 18.5 mΩ ID 100 A HiP247-4 2 34 1 Drain(1, TAB)
• AEC-Q101 qualified
• Very fast and robust intrinsic body diod

PDF File Details

Part number:

SCT020W120G3-4AG

Manufacturer:

STMicroelectronics ↗

File Size:

198.65kb

Download:

📄 Datasheet

Description:

Automotive-grade silicon carbide power mosfet. This silicon carbide Power MOSFET device has been developed using ST’s advanced and innovative 3rd generation SiC MOSFET technology.

SCT020W120G3-4AG Application

• Applications Power source(2) ND1TPS2DS3G4
• Main inverter (electric traction)
• DC/DC converter for EV/HEV
• On board char
