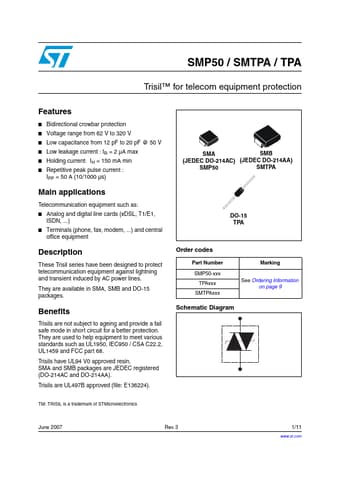

SMTPA220 Datasheet, Trisil, STMicroelectronics

SMTPA220 Features

• Trisil
• Bidirectional crowbar protection
• Voltage range from 62 V to 320 V
• Low capacitance from 12 pF to 20 pF @ 50 V
• Low leakage current : IR = 2 µA max

PDF File Details

Part number:

SMTPA220

Manufacturer:

STMicroelectronics ↗

File Size:

125.26kb

Download:

📄 Datasheet

Description:

Trisil. These Trisil series have been designed to protect telecommunication equipment against lightning and transient induced by AC power lin

SMTPA220 Application

• Applications Telecommunication equipment such as:
• Analog and digital line cards (xDSL, T1/E1, ISDN, )
• Terminals (phone, fax, mod
