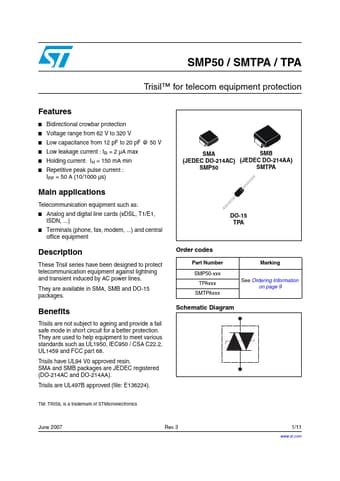

SMTPA130

Trisil

STMicroelectronics

SMTPA130 Features

* Bidirectional crowbar protection

* Voltage range from 62 V to 320 V

* Low capacitance from 12 pF to 20 pF @ 50 V

* Low leakage current : IR = 2 µA max

* Holding current: IH = 150 mA min

* Repetitive peak pulse current : IPP = 50 A (10/1000 µs) Main applications Telecommunic

SMTPA130 General Description

These Trisil series have been designed to protect telecommunication equipment against lightning and transient induced by AC power lines. They are available in SMA, SMB and DO-15 packages. Benefits Trisils are not subject to ageing and provide a fail safe mode in short circuit for a better protection.

SMTPA130 Datasheet (125.26 KB)
