SMTPA180 Datasheet, Trisil, STMicroelectronics

SMTPA180 Features

  • Trisil
  • Bidirectional crowbar protection
  • Voltage range from 62 V to 320 V
  • Low capacitance from 12 pF to 20 pF @ 50 V
  • Low leakage current : IR = 2 µA max

PDF File Details

Part number:

SMTPA180

Manufacturer:

STMicroelectronics ↗

File Size:

125.26kb

Download:

📄 Datasheet

Description:

Trisil. These Trisil series have been designed to protect telecommunication equipment against lightning and transient induced by AC power lin

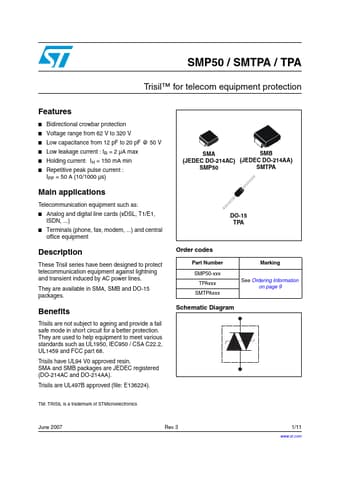

Datasheet Preview: SMTPA180 📥 Download PDF (125.26kb)
Page 2 of SMTPA180 Page 3 of SMTPA180

SMTPA180 Application

  • Applications Telecommunication equipment such as:
  • Analog and digital line cards (xDSL, T1/E1, ISDN, )
  • Terminals (phone, fax, mod
