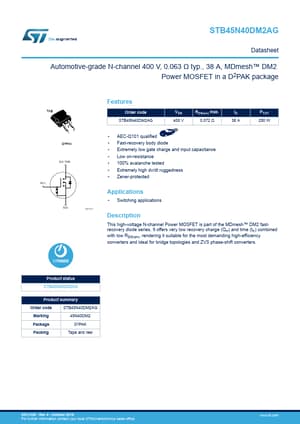

STB45N40DM2AG Datasheet - STMicroelectronics

STB45N40DM2AG N-channel Power MOSFET

This high voltage N-channel Power MOSFET is part of the MDmesh™ DM2 fast recovery diode series. It offers very low recovery charge (Qrr) and time (trr) combined with low RDS(on), rendering it suitable for the most demanding high efficiency converters and ideal for bridge topologies and ZVS phase-shi.

STB45N40DM2AG Features

* TAB Order code STB45N40DM2AG VDS 400 V RDS(on) max. 0.072 Ω ID 38 A PTOT 250 W 3 1 D2PAK Figure 1: Internal schematic diagram

* Designed for automotive applications and AEC-Q101 qualified

* Fast-recovery body diode

* Extremely low gate charge and input capacitance

* Low on-re
