STDRIVE101 Datasheet - STMicroelectronics

STDRIVE101 Triple half-bridge gate driver

The STDRIVE101 is a low voltage gate driver suitable for driving three-phase brushless motors. It is a single-chip with three half-bridge gate drivers for N-channel power MOSFETs. Each driver has a current capability of 600 mA (sink/source). It integrates a low drop linear regulator generating the s.

STDRIVE101 Features

* Operating voltage from 5.5 to 75 V

* 600 mA sink/source current capability

* 3.3 V and 5 V control logic

* Two input strategies:

* ENx/INx with adjustable deadtime generation

* INHx/INLx with interlocking

* Matched propagation delay for all c

STDRIVE101 Datasheet (910.86 KB)

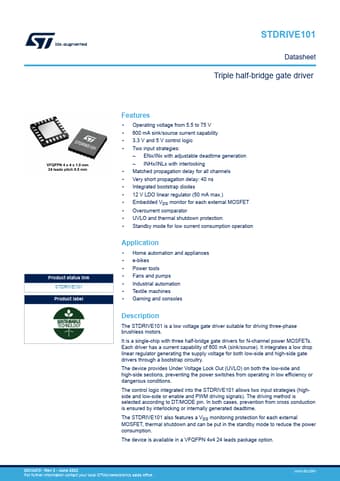

Preview of STDRIVE101 PDF

Datasheet Details

Part number:

STDRIVE101

Manufacturer:

STMicroelectronics ↗

File Size:

910.86 KB

Description:

Triple half-bridge gate driver.
