STF12PF06

P-CHANNEL POWER MOSFET

STMicroelectronics

STF12PF06 Features

* TYPE STP12PF06 STF12PF06

* STP12PF06 STF12PF06 Figure 1:Package RDS(on) < 0.20 Ω < 0.20 Ω ID 12 A 12 A VDSS 60 V 60 V TYPICAL RDS(on) = 0.18 Ω EXCEPTIONAL dv/dt CAPABILITY 100% AVALANCHE TESTED LOW GATE CHARGE APPLICATION ORIENTED CHARACTERIZATION 3 1 2 1 2 3 TO-22

STF12PF06 General Description

This Power MOSFET is the latest development of STMicroelectronis unique "Single Feature Size™" strip-based process. The resulting transistor shows extremely high packing density for low onresistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufactur.

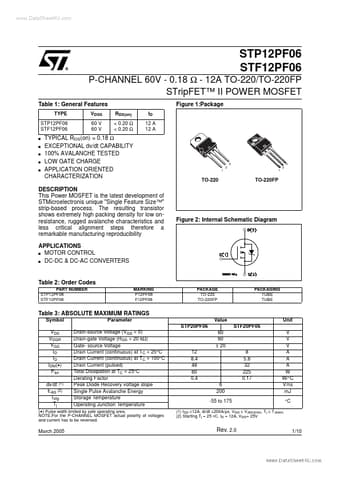

STF12PF06 Datasheet (301.47 KB)
