STF20NM50D N-channel Power MOSFET

The FDmesh™ associates all advantages of reduced on-resistance and fast switching with an intrinsic fast-recovery body diode. It is therefore strongly recommended for bridge topologies, in particular ZVS phase-shift converters. INTERNAL SCHEMATIC DIAGRAM s APPLICATIONS ZVS PHASE-SHIFT FULL BRIDGE.

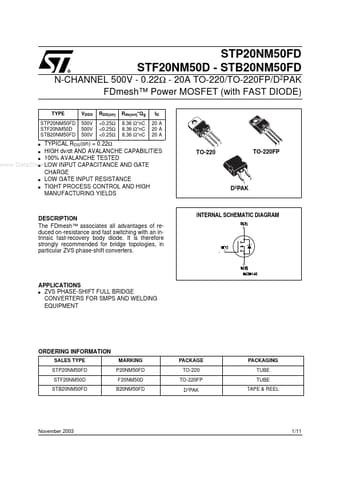

STP20NM50FD STF20NM50D - STB20NM50FD N-CHANNEL 500V - 0.22Ω - 20A TO-220/TO-220FP/D2PAK FDmesh™ Power MOSFET (with FAST DIODE) TYPE STP20NM50FD STF20NM50D STB20NM50FD s VDSS 500V 500V 500V RDS(on) <0.25Ω <0.25Ω <0.25Ω Rds(on) Qg 8.36 Ω nC 8.36 Ω nC 8.36 Ω nC ID 20 A 20 A 20 A 3 1 2 1 3 2 TYPICAL RDS(on) = 0.22Ω s HIGH dv/dt AND AVALANCHE CAPABILITIES s 100% AVALANCHE TESTED www.DataSheet4U.com s LOW INPUT CAPACITANCE AND GATE CHARGE s LOW GATE INPUT RESISTANCE s TIGHT PROCES.
