STF20NM50FD Datasheet - STMicroelectronics

STF20NM50FD - N-channel Power MOSFET

The FDmesh™ associates all advantages of reduced on-resistance and fast switching with an intrinsic fast-recovery body diode.

It is therefore strongly recommended for bridge topologies, in particular ZVS phase-shift converters.

3 2 1 TO-220FP 3 1 D²PAK 3 2 1 TO-220 Figure 1.

Internal schematic d

STF20NM50FD Features

* Type VDSS RDS(on) max RDS(on)

* Qg ID STB20NM50FD 500 V < 0.25 Ω 8.36 Ω

* nC STF20NM50FD 500 V < 0.25 Ω 8.36 Ω

* nC STP20NM50FD 500 V < 0.25 Ω 8.36 Ω

* nC 20 A 20 A 20 A

* High dv/dt and avalanche capabilities

* 100% avalanche tested

* Low input capacitance and gate

STF20NM50FD-STMicroelectronics.pdf

Preview of STF20NM50FD PDF

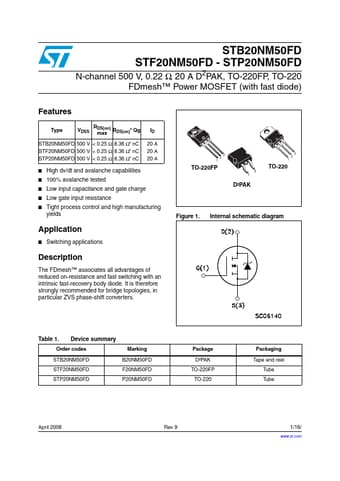

STF20NM50FD Datasheet Preview Page 2 STF20NM50FD Datasheet Preview Page 3
