STF27N60M2-EP N-channel Power MOSFET

STF27N60M2-EP Description

STF27N60M2-EP N-channel 600 V, 0.150 Ω typ., 20 A MDmesh™ M2 EP Power MOSFET in TO-220FP package Datasheet - production data .
These devices are N-channel Power MOSFETs developed using MDmesh™ M2 EP enhanced performance technology.

STF27N60M2-EP Features

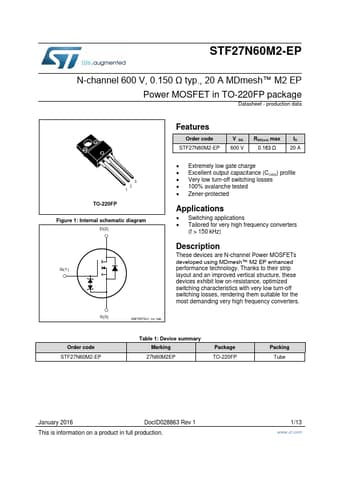

* Order code STF27N60M2-EP V DS 600 V RDS(on) max 0.163 Ω ID 20 A TO-220FP Figure 1: Internal schematic diagram D(2) G(1) S(3) AM15572v1_no_tab
* Extremely low gate charge
* Excellent output capacitance (COSS) profile
* Very low turn-off switching losses
* 100% avalanche tested

STF27N60M2-EP Applications

* Switching applications
