STFH10N60M6 Datasheet - STMicroelectronics

N-channel Power MOSFET

STFH10N60M6 Features

* Order code VDS @ TJmax RDS(on) max. STFH10N60M6 650 V 600 mΩ

* Reduced switching losses

* Lower RDS(on) per area vs previous generation

* Low gate input resistance

* 100% avalanche tested

* Zener-protected ID 6.4 A G(1) S(3) AM15572v1_no_tab Produc

STFH10N60M6 General Description

The new MDmesh M6 technology incorporates the most recent advancements to the well-known and consolidated MDmesh family of SJ MOSFETs. STMicroelectronics builds on the previous generation of MDmesh devices through its new M6 technology, which combines excellent RDS(on) per area improvement with one .

STFH10N60M6 Datasheet (547.69 KB)

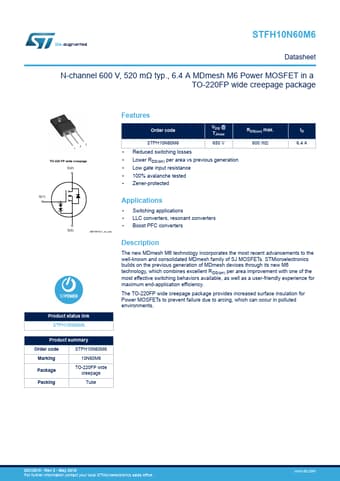

STFH10N60M6 Datasheet Preview — Preview of STFH10N60M6 PDF

Datasheet Details

Part number:

STFH10N60M6

Manufacturer:

STMicroelectronics ↗

File Size:

547.69 KB

Description:

N-channel power mosfet.
STFH10N60M6 Datasheet N-channel 600 V, 520 mΩ typ., 6.4 A MDmesh M6 Power MOSFET in a TO-220FP wide creepage package TO-220 FP wide creepage D(2) Fe.
