STFI28N60M2 Datasheet - STMicroelectronics

N-channel Power MOSFET

STFI28N60M2 Features

* 3 2 1 TO-220FP 1 23 I2PAKFP (TO-281) Figure 1. Internal schematic diagram Order code VDS @ TJmax RDS(on) max STF28N60M2 STFI28N60M2 650 V 0.150 Ω ID 22 A

* Extremely low gate charge

* Excellent output capacitance (Coss) profile

* 100% avalanche tested

* Zener

STFI28N60M2 General Description

These devices are N-channel Power MOSFETs developed using MDmesh™ M2 technology. Thanks to their strip layout and improved vertical structure, the devices exhibit low on-resistance and optimized switching characteristics, rendering them suitable for the most demanding high efficiency converters. AM.

STFI28N60M2 Datasheet (883.56 KB)

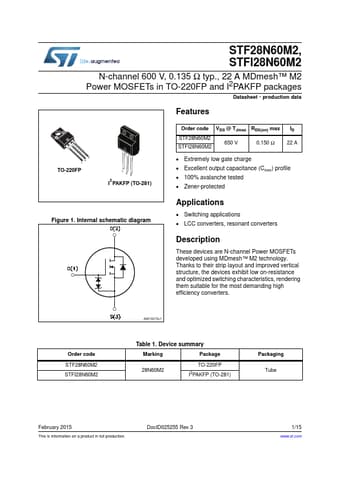

STFI28N60M2 Datasheet Preview — Preview of STFI28N60M2 PDF

Datasheet Details

Part number:

STFI28N60M2

Manufacturer:

STMicroelectronics ↗

File Size:

883.56 KB

Description:

N-channel power mosfet.
STF28N60M2, STFI28N60M2 N-channel 600 V, 0.135 Ω typ., 22 A MDmesh™ M2 Power MOSFETs in TO-220FP and I2PAKFP packages Datasheet - production data Feat.
