STGB19NC60W Datasheet - STMicroelectronics

19 A - 600 V - ultra fast IGBT

STGB19NC60W General Description

This IGBT utilizes the advanced PowerMESH™ process resulting in an excellent trade-off between switching performance and low on-state behavior. 3 1 D2PAK 3 2 1 TO-220 3 2 1 TO-247 Figure 1. Internal schematic diagram Table 1. Device summary Order codes Marking STGB19NC60WT4 GB19NC60W STGP1.

STGB19NC60W Datasheet (391.10 KB)

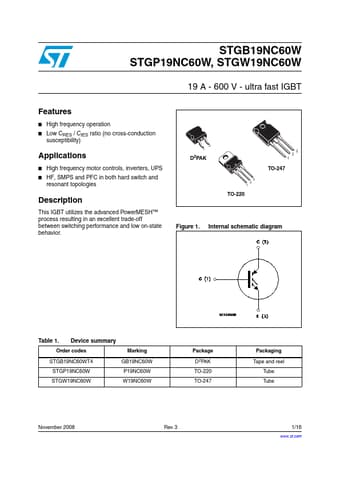

Preview of STGB19NC60W PDF

Datasheet Details

Part number:

STGB19NC60W

Manufacturer:

STMicroelectronics ↗

File Size:

391.10 KB

Description:

19 a - 600 v - ultra fast igbt.
