STGB25N40LZAG Datasheet - STMicroelectronics

Automotive-grade 400V internally clamped IGBT

STGB25N40LZAG Features

* AEC-Q101 qualified

* SCIS energy of 320 mJ @ TJ = 25 °C

* Parts are 100% tested in SCIS

* ESD gate-emitter protection

* Gate-collector high voltage clamping

* Logic level gate drive

* Very low saturation voltage

* High pulsed current

STGB25N40LZAG General Description

This application-specific IGBT utilizes the most advanced PowerMESH technology optimized for coil driving in the harsh environment of automotive ignition systems. These devices show very low on-state voltage and very high SCIS energy capability over a wide operating temperature range. Moreover, ESD-.

STGB25N40LZAG Datasheet (539.79 KB)

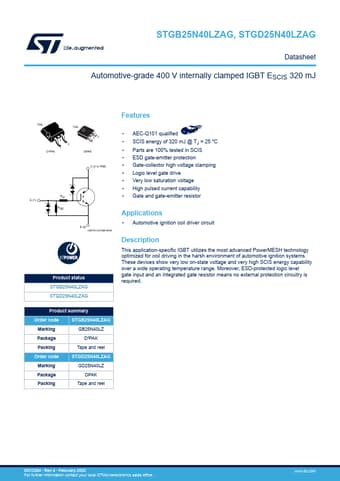

STGB25N40LZAG Datasheet Preview — Preview of STGB25N40LZAG PDF

Datasheet Details

Part number:

STGB25N40LZAG

Manufacturer:

STMicroelectronics ↗

File Size:

539.79 KB

Description:

Automotive-grade 400v internally clamped igbt.
STGB25N40LZAG, STGD25N40LZAG Datasheet Automotive-grade 400 V internally clamped IGBT ESCIS 320 mJ TAB TAB 2 3 1 D2PAK 23 1 DPAK C (2 or TAB) G .
